Optical Gates for measuring of bullet velocity - WLS03/04

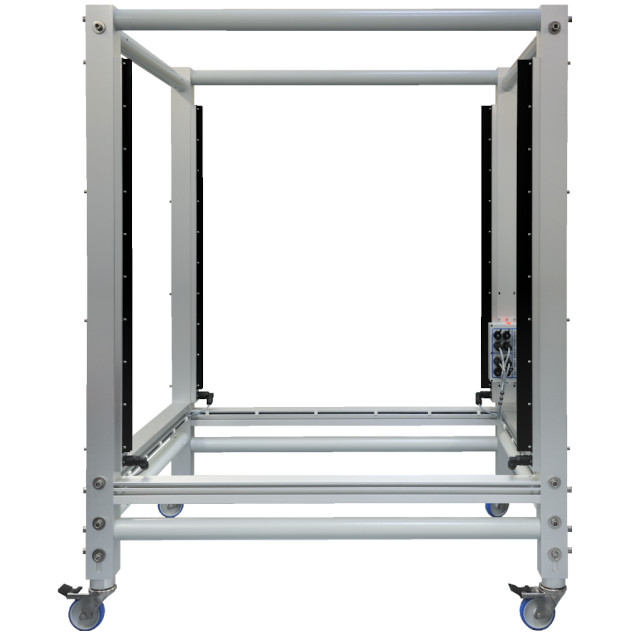

Waterproof Target System WTS03 is accurate electronic equipment for measuring of projectile velocity, designed for working in harsh environment.

Basic Technical Data

• Principle of measurement

  ---

  two vertical optical gates, type MOG03

• Calibre range

  ---

  min. 4 - 20mm

• Velocity range

  ---

  min. 50 - 3000 m/s

• Velocity inaccuracy

  ---

  <0.2%

• Safe passage area

  ---

  1050 x 1200mm (W x H)

• Effective sensor area

  ---

  1000 x 1000mm

• Reaction time

  ---

  typ. 1us

• Meas. base for velocity

  ---

  1000mm

• Trigger modes

  ---

  rise / fall edge (= base / nose)

• Shock wave filtr

  ---

  built-in hardware, optional software (0 - 1000us)

• Threshold level

  ---

  optional from -75% to +75% of meas. range

• Output signals

  ---

  BNC START and STOP output

• Gain range

  ---

  selectable 1x, 2x, 5x and 10x

• Operating temperature

  ---

  from -30°C to +45°C

• Protection

  ---

  IP66 (dustproof, waterproof) – instrument only!

• Air humidity

  ---

  up to 100%, condensing or non-condensing

• Altitude

  ---

  max. 3000m

• Power supply

  ---

  100-240 VAC

• Dimensions (approx.)

  ---

  1350 x 1850 x 1100mm (W x H x D)

• Weight

  ---

  110 kg
