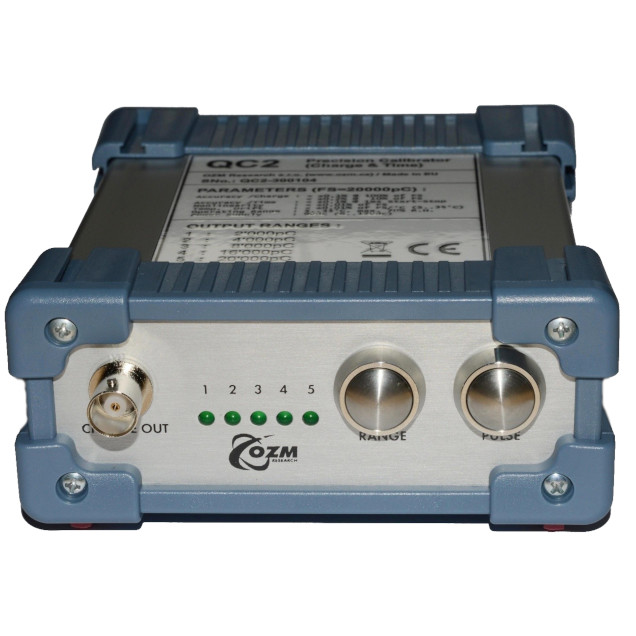

Precision Calibrator QC2

Precision charge and time interval calibrator for Ballistic Analyzers types BA04S, BA04S2, BA04SE, BA06S, BA06L, TR2519A, BA08M and other charge and time measuring devices.

Basic Technical Data

• Accuracy / Charge

  ---

  < ±0,1% @ 100% of FS; < ±0,2% @ 10% of FS

• ---

  FS = Full Scale = 20000pC

• Accuracy / Time

  ---

  < ±0,1% @ 1ms Start-Stop

• Charge pulse

  ---

  amplitude depends on Range, max. amplitude = 20000pC

• ---

  compatible with BA/TR inverting charge amplifiers

• ---

  pulse width = 5ms, almost rectangle shape

• Default chare ranges

  ---

  1 - 2000pC, 2 - 4000pC, 3 - 8000pC

• ---

  4 - 16000pC, 5 - 20000pC

• START/STOP Pulse

  ---

  positive amplitude +5V, rectangle shape

• ---

  rise/fall edge < 0.1μs, pulse width 0.01ms (10μs)

• ---

  START pulse delay approx. 25ms, START-STOP distance 1ms ±0,1%

• Nonlinearity

  ---

  < ±0,01% of FS

• Temperature drift

  ---

  < ±0,01% of FS/°C (5..35°C)

• Time drift

  ---

  < ±0,01% of FS/year

• Operating range

  ---

  5..35°C, max. 70% R. H.

• Power supply

  ---

  9V DC (6..12V DC)
