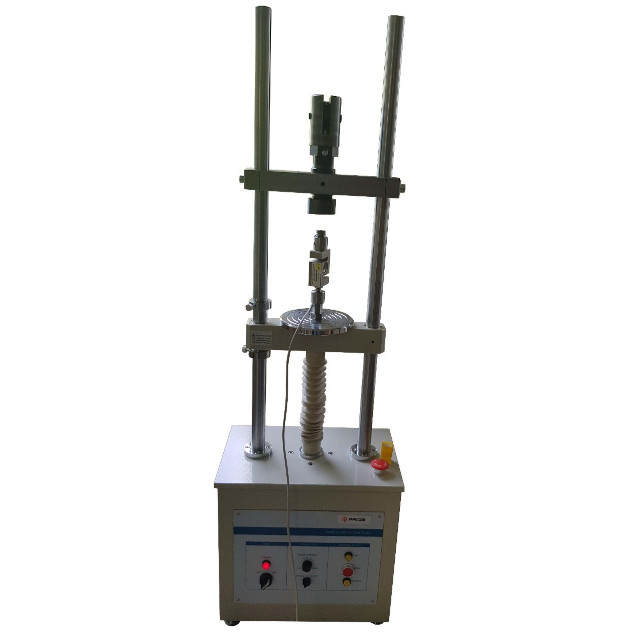

Testing Device VM-1

Test equipment for measuring of bullet pull force from cartridges.

Basic Technical Data

• Width

  ---

  410 mm

• Depth

  ---

  260 mm

• Height

  ---

  1040 mm

• Maximal force

  ---

  5kN / 10kN

• Force accuracy

  ---

  0,5%

• Moving speed

  ---

  from 24 to 120 mm/min

• Range

  ---

  max. 200 mm

• Power supply

  ---

  230V / 50 Hz
